Indexed Line with 2 Machining Stations 24v

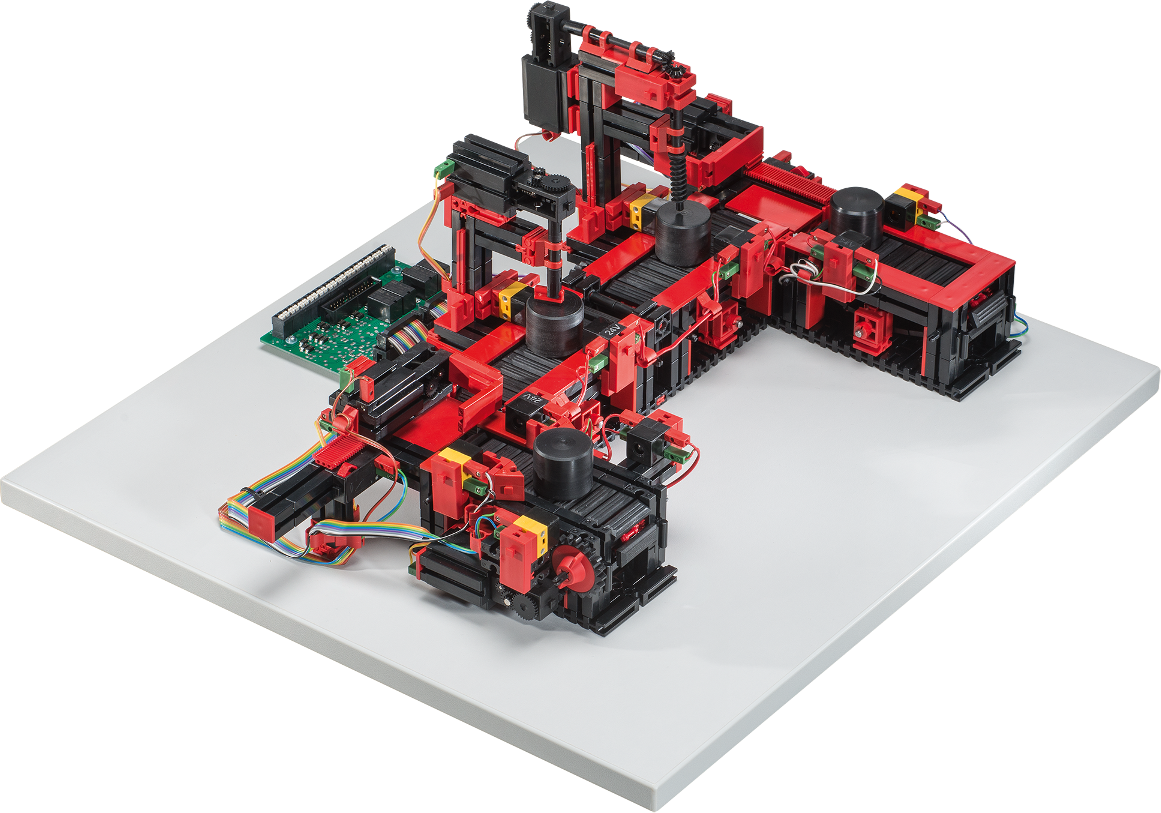

U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections. Fully assembled training model for use with PLC (Programmable Logic Controllers) and PLC programming software.

MFR Part #: 96790

$1,204.95

Availability: Out of stock

Qty:

Overview
Specifications
Reviews

U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections.

Components on this model include 4 conveyor belts, 8 XS motors, 4 push button limit switches, 5 phototransistors, and 5 LED Light barriers.

Dimensions: 18.7 x 17.72 x 10.63 inches

Weight: 7.82

Products specifications

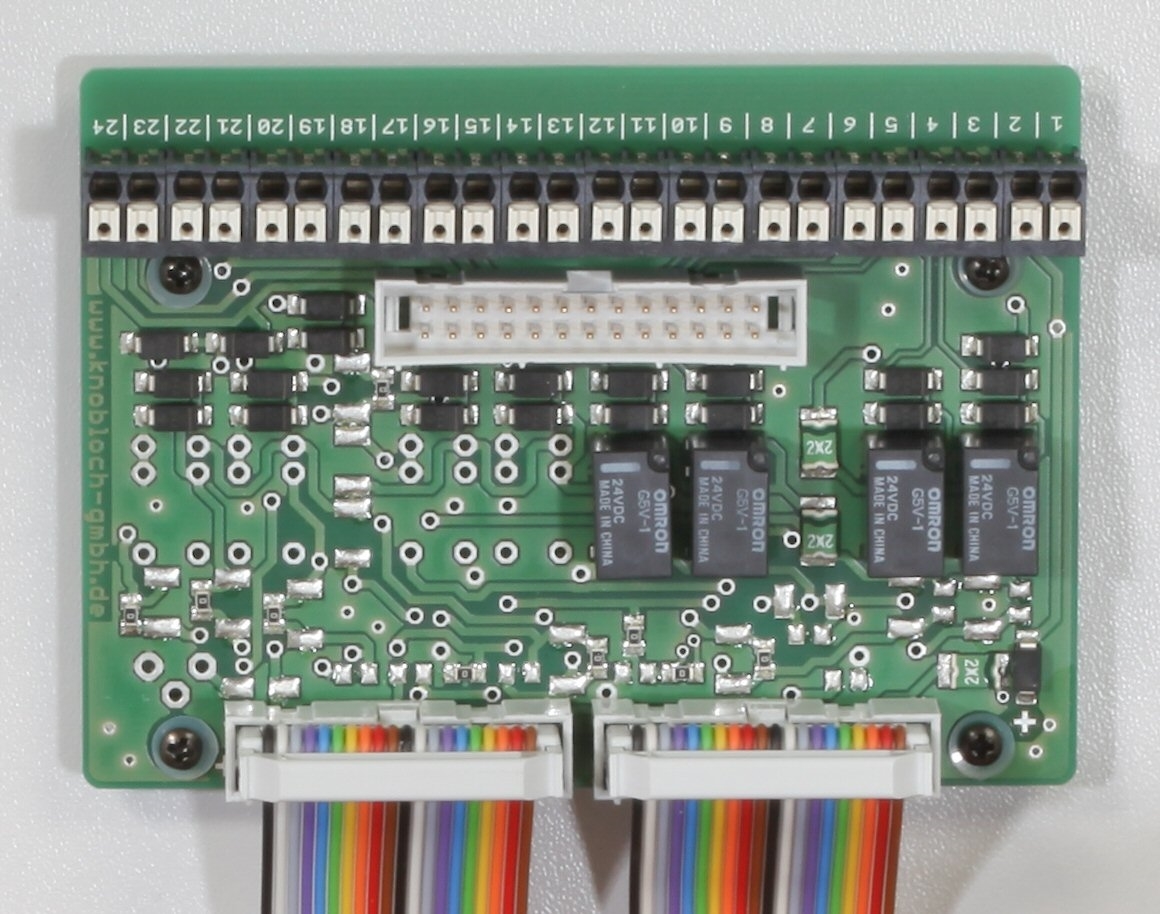

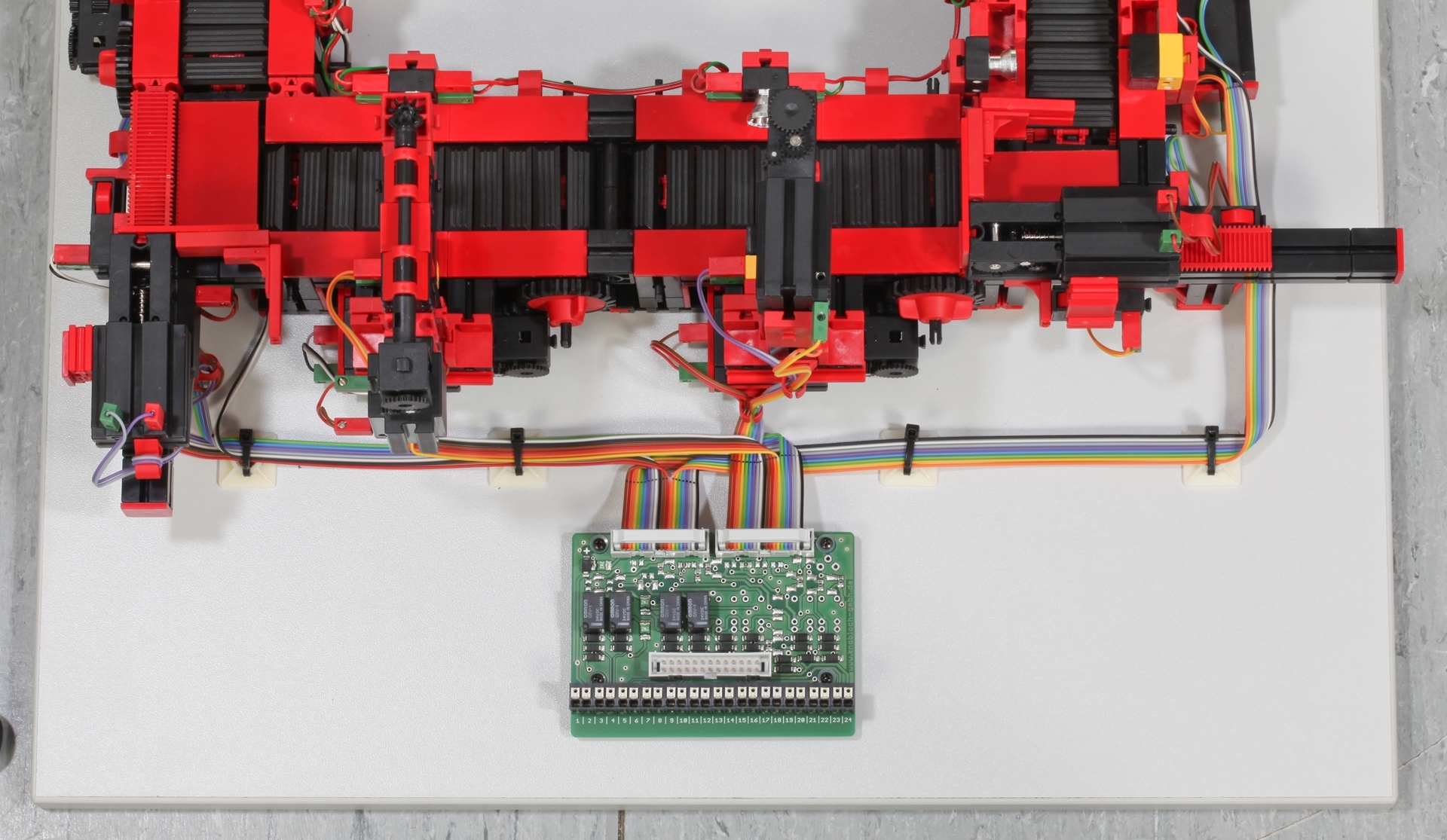

Detail	Conveyor belt, arranged in U-shape, for intermittent transport and for the machining of several workpieces. The fischertechnik Indexed Line with 2 Machining Stations 24V model includes: 1 drilling station 1 milling station 4 conveyor belts 8 XS motors 4 push button limit switches (potential free) 5 LED light barriers 9 digital inputs 10 outputs--6 motors with one direction of rotation, 2 motors counter-clockwise, clockwise rotation Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O. NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

U-shaped conveyor line. Features a milling and a drilling station, and four conveyor belt sections.

Components on this model include 4 conveyor belts, 8 XS motors, 4 push button limit switches, 5 phototransistors, and 5 LED Light barriers.

Dimensions: 18.7 x 17.72 x 10.63 inches

Weight: 7.82

Products specifications

Detail	Conveyor belt, arranged in U-shape, for intermittent transport and for the machining of several workpieces. The fischertechnik Indexed Line with 2 Machining Stations 24V model includes: 1 drilling station 1 milling station 4 conveyor belts 8 XS motors 4 push button limit switches (potential free) 5 LED light barriers 9 digital inputs 10 outputs--6 motors with one direction of rotation, 2 motors counter-clockwise, clockwise rotation Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O. NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware
